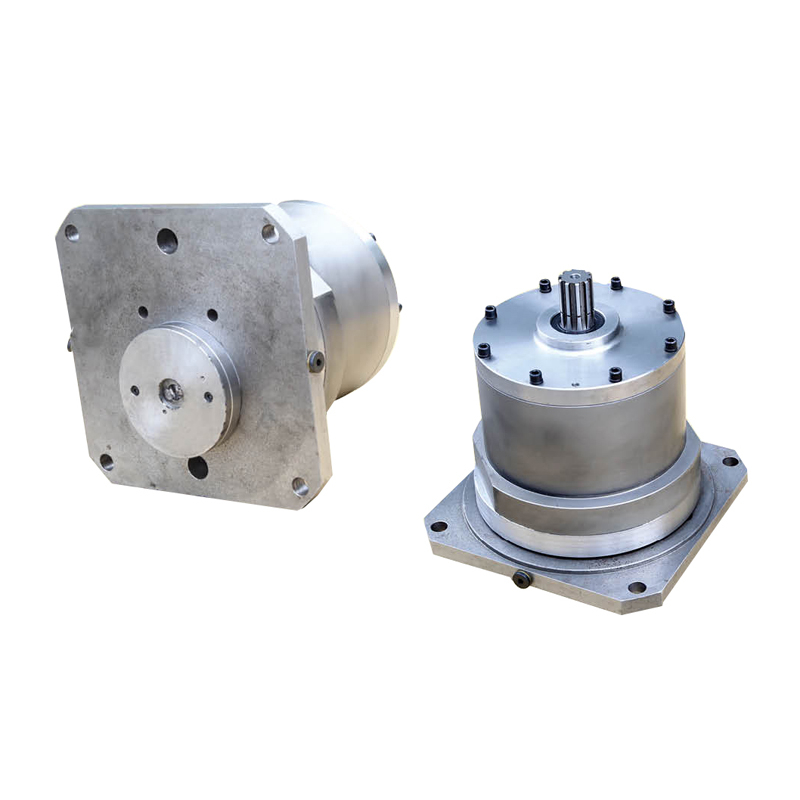

| model | SHA05W30078 | SHA10W30080 | SHA10W30110 |
| Transmission ratio | 78.2 | 80 | 112 |
| Input form | Rectangular spline 10-4xφ35xφ28 | Rectangular spline 10-4xφ35xφ28 | Rectangular spline 10-4xφ35xφ28 |
| Output form | Ring gear output | Ring gear output | Ring gear output |
| Output ring gear | 42CrMo quenching and tempering nitriding treatment | 42CrMo quenching and tempering nitriding treatment | 42CrMo quenching and tempering nitriding treatment |
| Gear, shaft material | 20CrMnTi | 20CrMnTi | 20CrMnTi |
| net weight | 60kg | 114kg | 114kg |
| Input speed | 1400rpm | 1400rpm | 1400rpm |
| Output torque | 3350N. M | 8560N. M | 8560N. M |
1. The input direction of the reducer is opposite to the output direction;
2. The surface color of the reducer is based on customer requirements;
3. The transmission ratio of the reducer and the input and output interfaces can be customized according to customer requirements.
