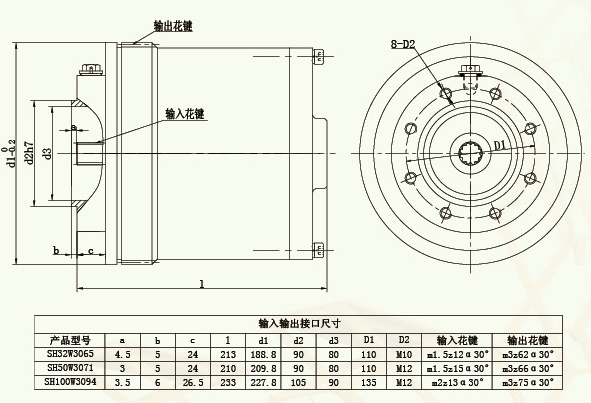

| model | SH32W3065 | SH50W3071 | SH100W3094 |
| Transmission ratio | 65.51 | 71.47 | 94.08 |
| Input form | Spline M1.5Z12a30 ° | Spline M1.5Z15a30 ° | Spline M2Z13a30 ° |
| Output form | Ring gear output | Ring gear output | Ring gear output |
| Output ring gear | 42CrMo quenching and tempering nitriding treatment | 42CrMo quenching and tempering nitriding treatment | 42CrMo quenching and tempering nitriding treatment |
| Gear, shaft material | 20CrMnTi | 20CrMnTi | 20CrMnTi |
| net weight | |||
| Input speed | 2860rpm | 2860rpm | 2860rpm |
| Output torque | 1000N. M | 1500N. M | 3500N. M |
1. The input direction of the reducer is opposite to the output direction;
2. The surface color of the reducer is based on customer requirements;
3. The transmission ratio of the reducer and the input and output interfaces can be customized according to customer requirements.
